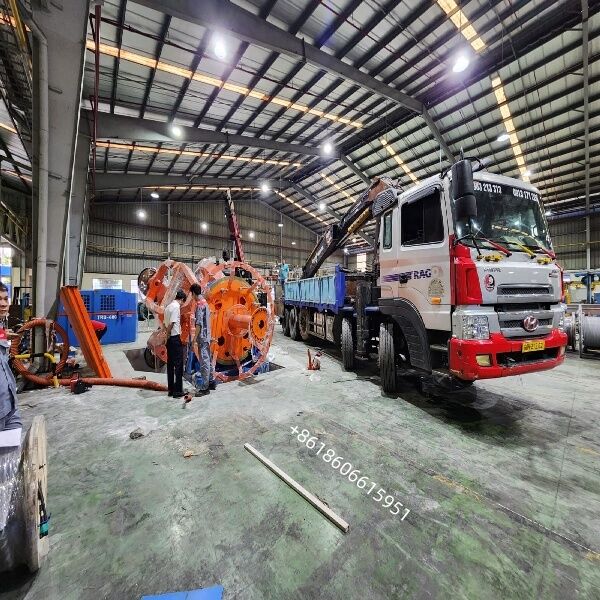

Cable Laying-up Machine 1250/1+4 – 1250mm Bobbin Planetary Cabler
Overview
The CLY-1250/1+4 Planetary Laying-up Machine is designed for cabling / laying-up of multi-core low and medium voltage power cables, control cables, and mining cables. It is suitable for both round and sector-shaped cores (up to 5 cores). The stranding cage is equipped with a 100% back-twist function, ensuring minimal internal stress in the laid-up cable. The entire line is controlled by a PLC + HMI touch screen with inverter-driven motors for precise lay-up pitch and synchronized line speed.
Application
Laying-up of LV/MV power cables (PVC, XLPE insulated)
Control cable and mining cable assembly (2–5 cores)
Suitable for round or pre-spiraled sector-shaped conductors
Optional non-metallic taping (polyester / mica tape) and steel wire armoring
Key Features
Planetary stranding cage (1 central + 4 side bobbins, PN1250) with full back-twist capability
S/Z stranding direction, lay-up pitch stepless adjustable via PLC (300–2500 mm)
Dual-support large bearing structure for high-speed, low-vibration operation
Electric bobbin clamping / releasing, pre-twist function for sector cores
Equipped with non-metallic wrapping head (2-pad, 500–650 rpm) & optional steel armoring
Pneumatic capstan with length metering & auto-stop on fault
Complete safety protections: overload, over-travel, guard door interlock, emergency stop
| Type |
1+3 = 4 Bobbins |
1+4 = 5 Bobbins |
| Model |
KP100 |
KP125 |
KP160 |
KP100 |
KP125 |
KP160 |
| Drum φ[mm] |
1000 |
1250 |
1600 |
1000 |
1250 |
1600 |
| Cable Section for Round Cores [mm2] |
16-240 |
25-300 |
25-300 |
16-240 |
25-300 |
25-300 |
| Cable Section for Sector Cores [mm2] |
16-240 |
16-240 |
16-240 |
16-240 |
16-240 |
16-240 |
| Cable Section for Pre-Spiral Cores [mm2] |
16-240 |
16-400 |
16-400 |
16-240 |
16-400 |
16-400 |
| Finished Cable φ[mm] |
60 |
80 |
100 |
60 |
80 |
100 |
| Rotor Speed [rpm] |
55 |
36 |
24 |
55 |
30 |
20 |
| Line Speed [m/min] |
60 |
60 |
45 |
60 |
60 |
45 |
| Main Motor Power [kW] |
55 AC |
55 AC |
55 AC |
65 AC |
65 AC |
65 AC |
Machine may strand the round cables with back twist and sector cables without back twist
Line drive by A.C. / D.C motors with electronic or mechanical synchronization between line components.
Facilitated with motorized sector correction
With or without back twist arrangement ( Sun and Planetary Arrangement)
Main shaft is supported with roller bearings for easy maintenance.
Special Gear Boxes for Main Drive
Heavy Duty Pneumatic Drum Brake for Main Cage
Filler Bobbin Provision for 4 to 9 Bobbins.
HMI and PLC Equipped (optional)
Easy Lay Setting
Range of Takeup and Payoffs available
Heavy Duty Haul Off Belt Unit
Inline Tangential/Concentric Taping Heads
